DTC B1602-00: Can Line Error
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

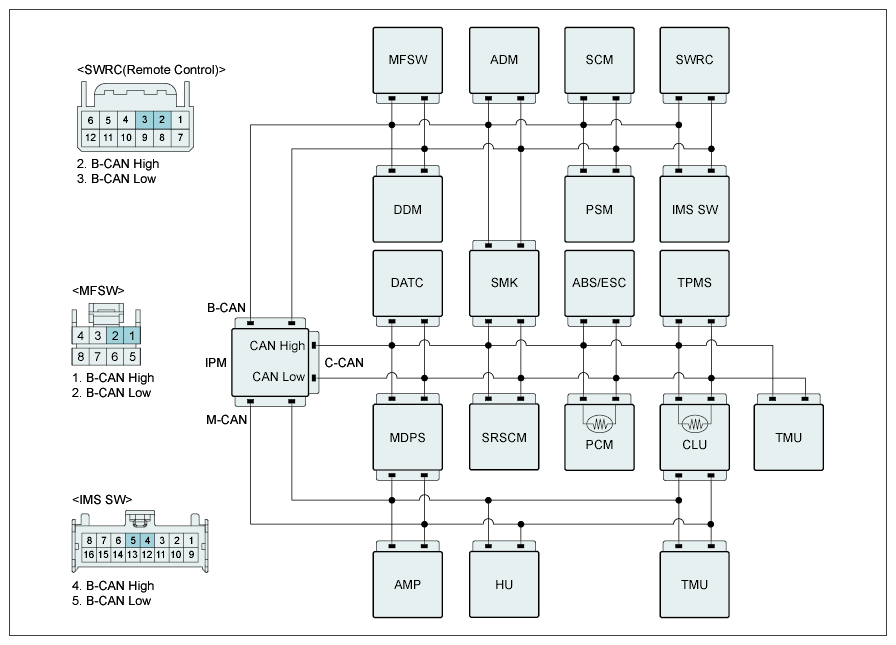

Fig 1: Steering Control Module And Intelligent Integrated Platform Module Circuit
Courtesy of HYUNDAI MOTOR AMERICA

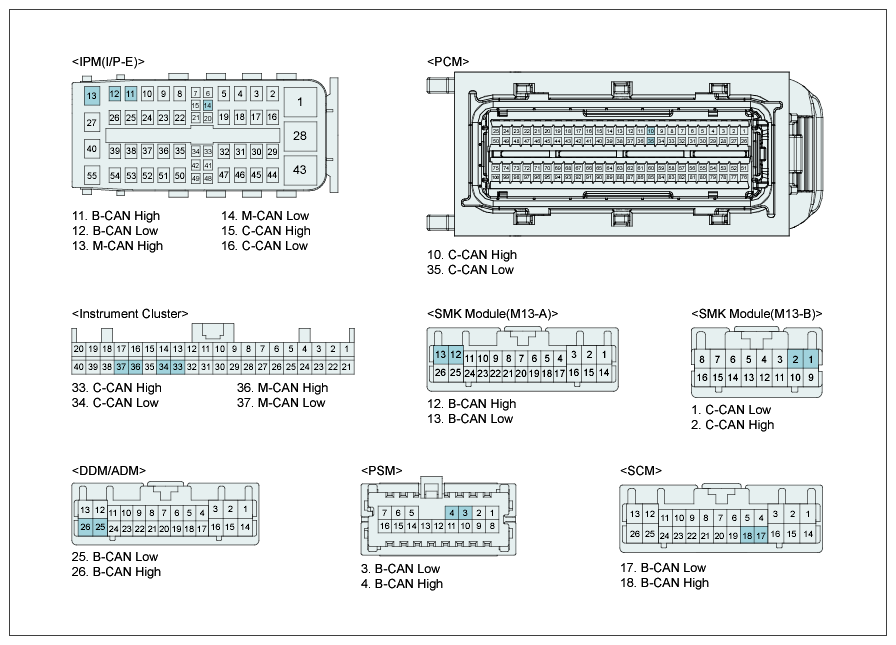

Fig 2: Steering Control Module And Intelligent Integrated Platform Module Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
