Repair Procedures: Inspection

Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

Fig 1: Ignition Switch And Key Warning Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

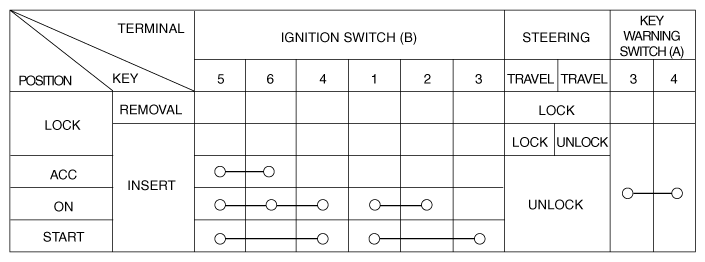

Fig 2: Ignition Switch And Key Warning Switch Terminal Continuity Chart

Courtesy of HYUNDAI MOTOR AMERICA
