Signal Waveform & Data

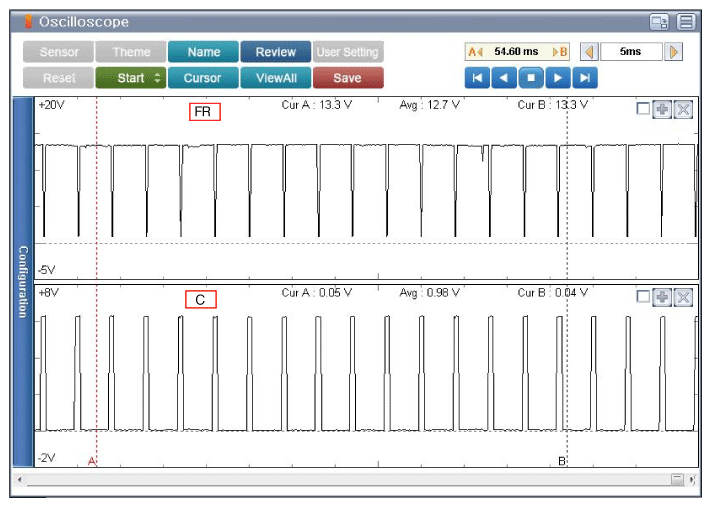

Fig 1: Screen Display - Signal Waveform Of Idle Status

Courtesy of HYUNDAI MOTOR AMERICA

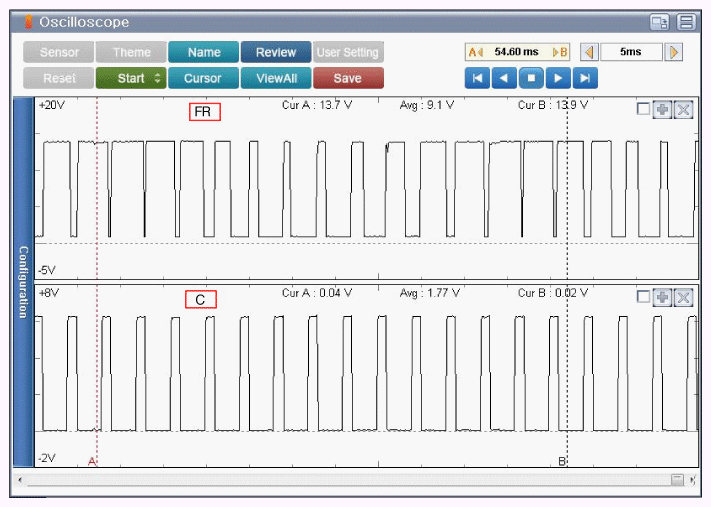

Fig 2: Screen Display - Signal Waveform Of Electrical Load (Head Lamp And Defrost ON)

Courtesy of HYUNDAI MOTOR AMERICA

Duty (+) from FR terminal is increased if electrical loads are ON (Head Lamp and Defrost are ON) ECM/PCM controls generation of alternator with duty from FR terminal when electrical Loads turn on
