Inspection
>>
Inspection flow
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inspection flow

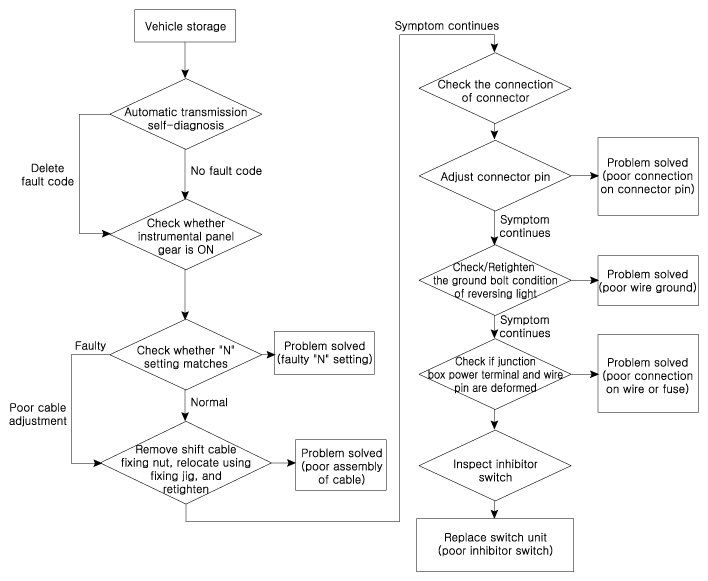

Fig 1: Automatic Transmission Troubleshooting Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
