Engine Oil Schematics

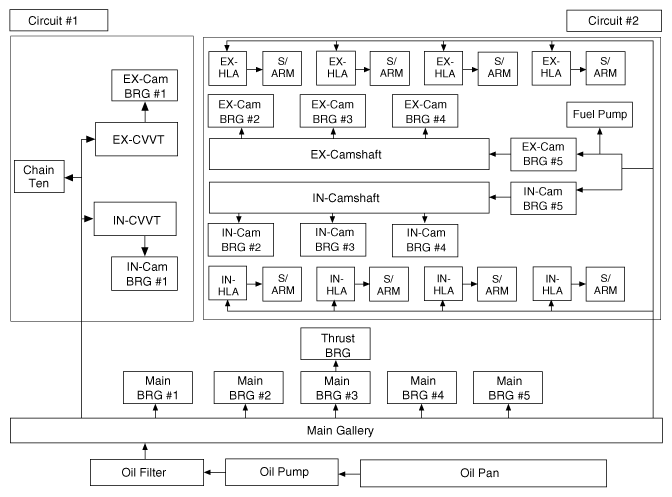

Fig 1: Engine Oil Schematic Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
