FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

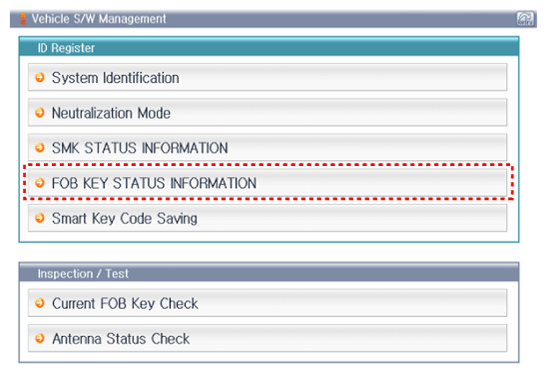

    Fig 1: Scantool Display - Vehicle S/W Management
    G12023373Courtesy of HYUNDAI MOTOR AMERICA

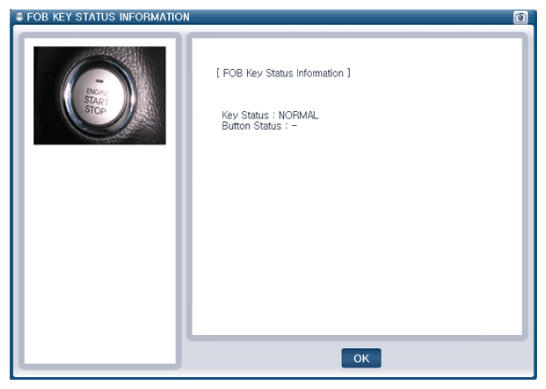

    Fig 2: Scantool Display - FOB Key Status Information
    G12023374Courtesy of HYUNDAI MOTOR AMERICA
