[Driver Power Window Switch]

Disconnect the negative (-) battery terminal.
Remove the driver door trim.
(Refer to Body - "FRONT DOOR TRIM ")
Disconnect the power mirror switch connector from the door trim.

Fig 1: Driver Power Window Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between the terminals in each switch position as displayed below.
[Power Window Switch Inspection]

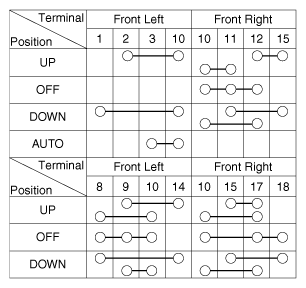

Fig 2: Power Window Switch Terminals Continuity Chart
Courtesy of HYUNDAI MOTOR AMERICA

[Power Door Lock Switch Inspection]

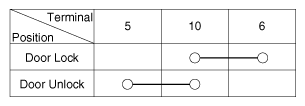

Fig 3: Power Door Lock Switch Terminals Continuity Chart
Courtesy of HYUNDAI MOTOR AMERICA

[Power Window Lock Switch Inspection]

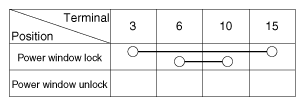

Fig 4: Power Window Lock Switch Terminals Continuity Chart
Courtesy of HYUNDAI MOTOR AMERICA
