Components And Components Location: Components

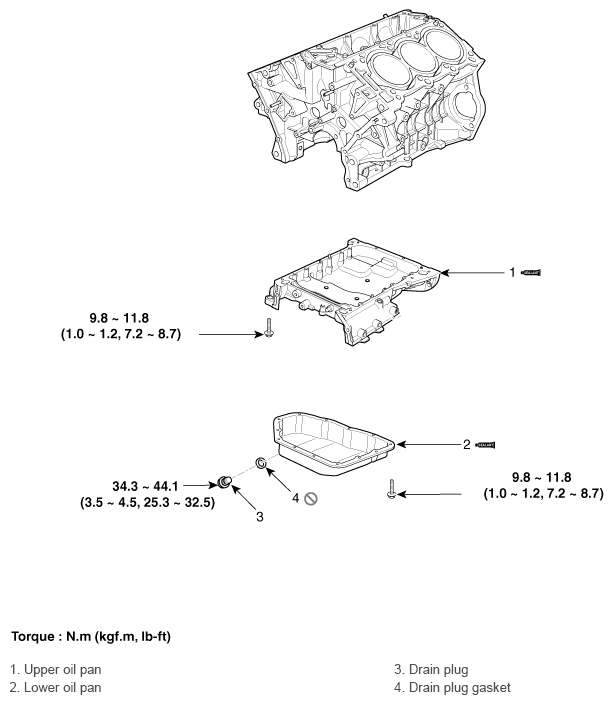

Fig 1: Oil Pan Components Location With Torque Specifications
G12033720Courtesy of HYUNDAI MOTOR AMERICA
