Compensation Requirement and Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Simultaneous replacement of 4WD ECU (Controller) and coupling
    • Does not require compensation.
  2. Replacement of coupling only
    • Reset the 4WD ECU's (Controller) clutch learning.

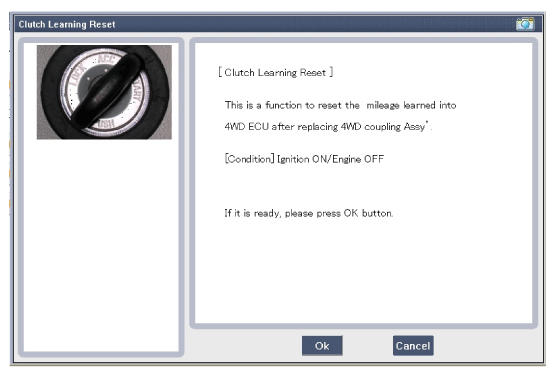

    G12034420Courtesy of HYUNDAI MOTOR AMERICA

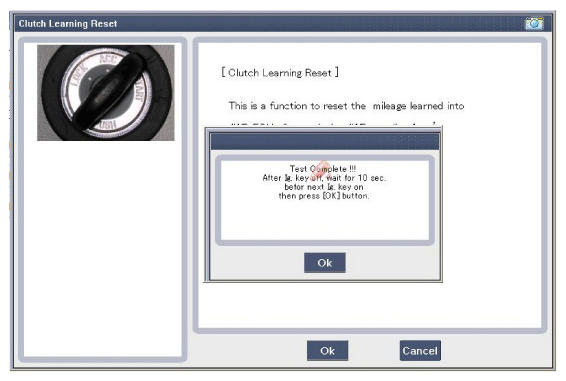

    G12034421Courtesy of HYUNDAI MOTOR AMERICA
  3. Replacement of 4WD ECU (Controller) only
    • Before replacement: Check the ECU's clutch learning.

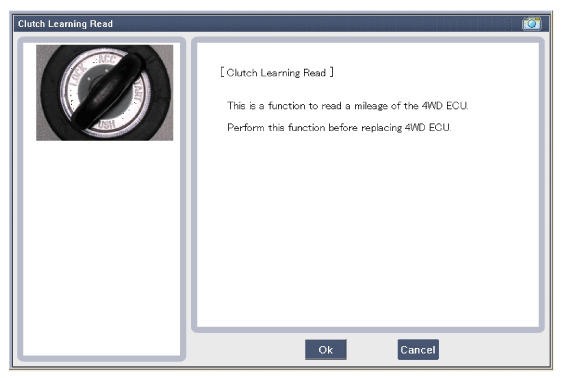

      G12034422Courtesy of HYUNDAI MOTOR AMERICA

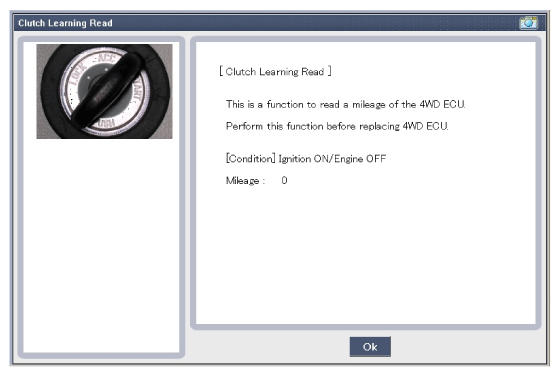

      G12034423Courtesy of HYUNDAI MOTOR AMERICA
    • After replacement: Enter the original ECU's clutch learning into the replacement ECU.

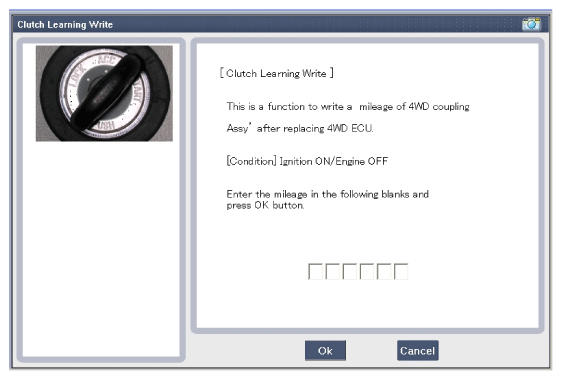

      G12034424Courtesy of HYUNDAI MOTOR AMERICA
