System Block Diagram: Notes

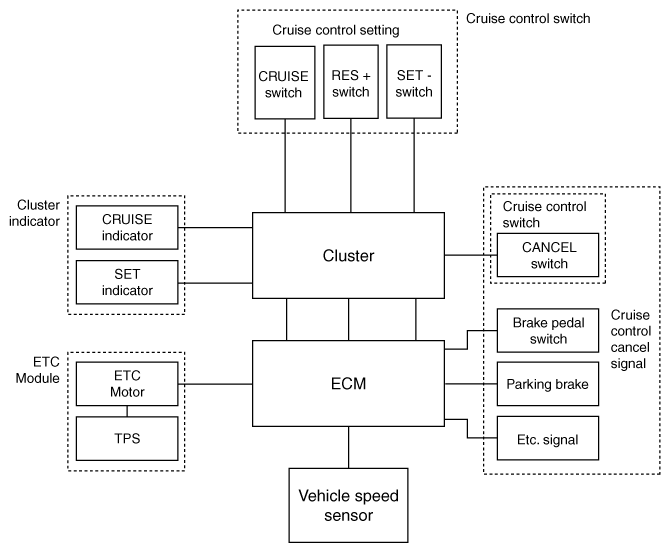

Fig 1: Cruise Control System Block Diagram Description And Operation
G12033850Courtesy of HYUNDAI MOTOR AMERICA
