Monitor GDS Data

IG KEY "ON" & Engine "OFF".
Erase DTC after connecting GDS.

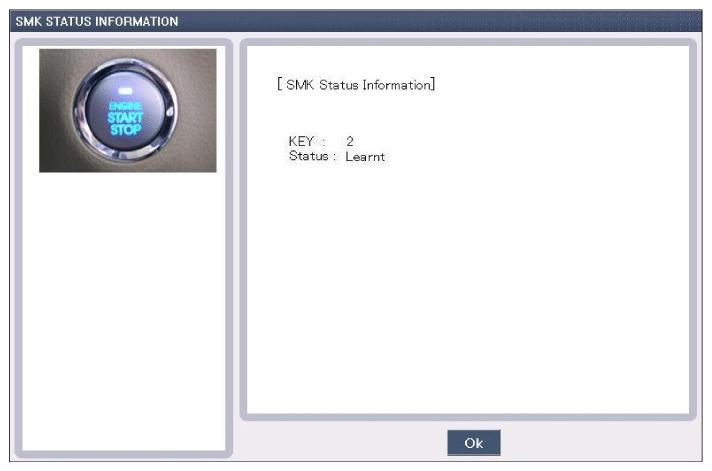

Check Smart key status in "Vehicle S/W Management ", if DTC is retrieved.

Courtesy of HYUNDAI MOTOR AMERICA
Is the Smart key PCM learnt status?
YES
- Fault is intermittent caused by poor contact in Smart key PCM and/or PCM's connector or was repaired and Smart key PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
