Assist Power Window Switch

Fig 1: Assist Power Window Switch Connector Terminals And Description Charts (DDM-IMS - 1 Of 2)
G11988875Courtesy of HYUNDAI MOTOR AMERICA

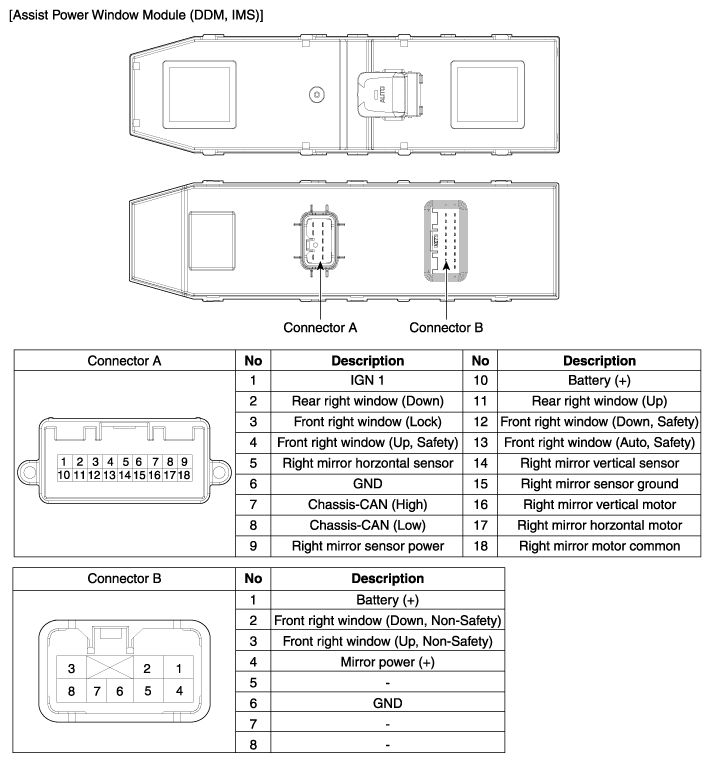

Fig 2: Assist Power Window Switch Connector Terminals And Description Charts (DDM-IMS - 2 Of 2)
G11988876Courtesy of HYUNDAI MOTOR AMERICA
