Rear Power Window Switch

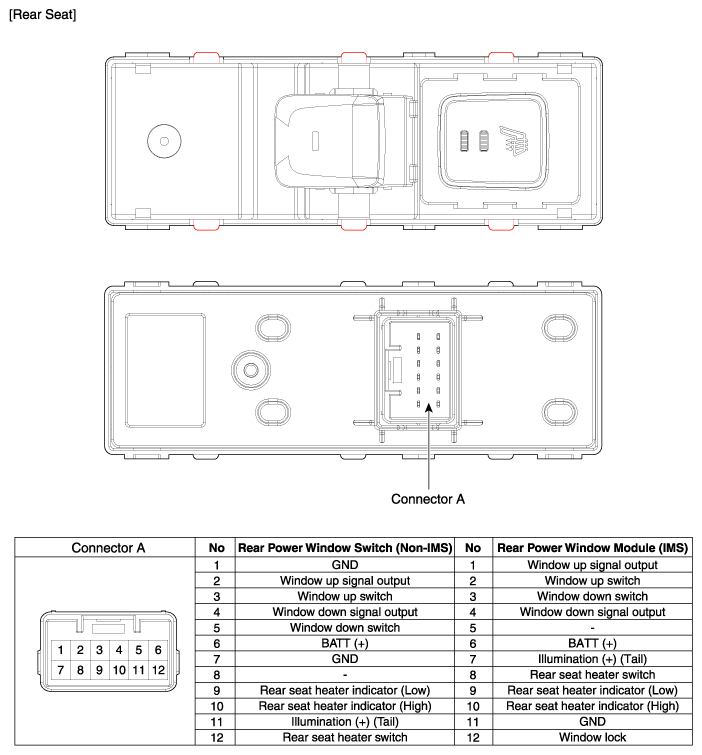

Fig 1: Rear Power Window Switch Connector Terminals And Description Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
