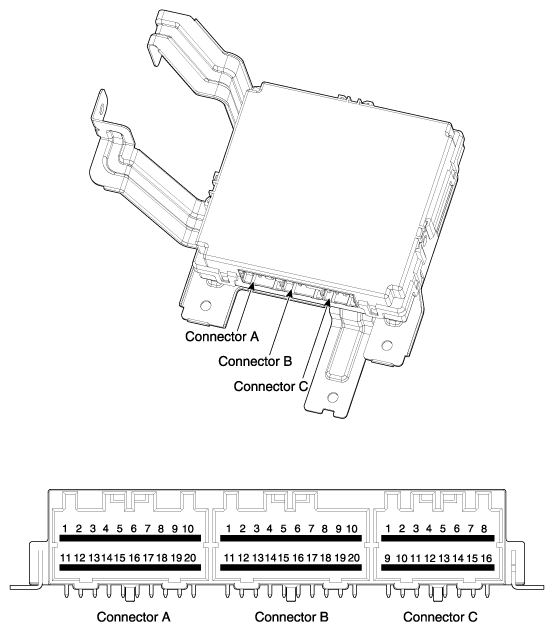

Components (1)
WARNING: This page is about a different variant/trim than selected.
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | BAT (+)_Signal | Driver's door antenna_GND | ESCL (-) |
| 2 | BAT (+)_Power | Driver's door antenna_Power | ESCL Unlock switch |
| 3 | IGN 1 | - | ESCL Enable |
| 4 | IGN 2_Relay output | B-CAN (High) | SSB LED (OFF) |
| 5 | IGN 1_Relay output | B-CAN (Low) | SSB LED (IGN) |
| 6 | Assist door antenna_GND | Wheel speed sensor | SSB LED (ACC) |
| 7 | Interior antenna 2_GND | AT: "P" signal input MT: Clutch switch signal input | SSB Illumination (+) |
| 8 | Trunk antenna_GND | - | SSB Illumination (-) |
| 9 | Interior antenna 1_GND | C-CAN (Low) | Immobilizer antenna_GND |
| 10 | Bumper antenna_GND | C-CAN (High) | Immobilizer antenna_Power |
| 11 | ACC | GND 1 | - |
| 12 | IGN2 | GND 2 | Start signal feedback |
| 13 | ACC_Relay output | Assist door switch_signal | Stop lamp fuse |
| 14 | Starter_Relay output | Driver's door switch_signal | Brake switch |
| 15 | ESCL (+) | - | Immobilizer indicator |
| 16 | Assist door antenna_Power | EMS CAN | Exterior buzzer |
| 17 | Interior antenna 2_Power | ESCL CAN | |
| 18 | Trunk antenna_Power | RPM_Input | |
| 19 | Interior antenna 1_Power | SSB switch2 | |
| 20 | Bumper antenna_Power | SSB switch1 |
