Sonata Limited 2.0T
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.0L (Except HEV)
>>
E-CVVT Motor
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

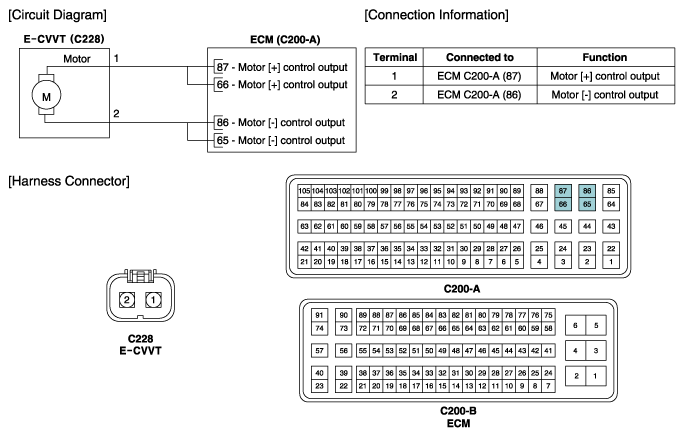

Fig 1: E-CVVT Motor Circuit
Courtesy of HYUNDAI MOTOR AMERICA
