Rear Power Window Switch

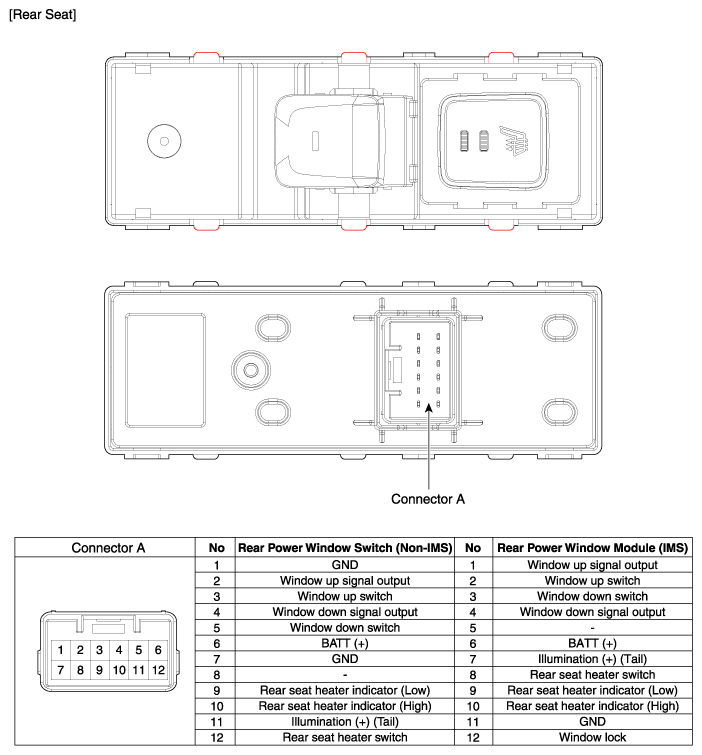

Fig 1: Rear Power Window Switch Connector Terminals Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
