Circuit Diagram

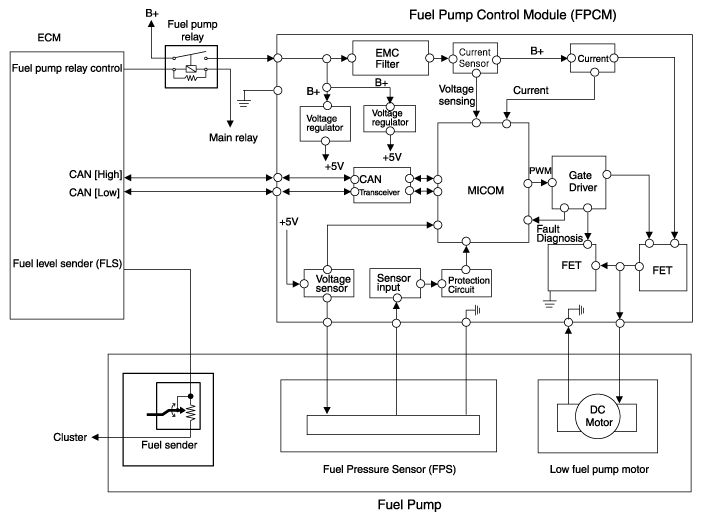

Fig 1: Fuel Pump Control Module (FPCM) Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
