Repair Procedures: Installation

Install in the reverse order of removal.
Perform the procedures related in the ECM after replacing the TCM. (Refer to Engine Control/Fuel System - "Engine Control Module ")
Perform the TCM adaptive values learning procedure. (Refer to Automatic Transaxle Control System - "Repair procedures ")
Perform EOP oil flow deviation learning using the GDS
- Connect the VCI data cable to the self-diagnosis connector located at the lower section of the driver-side crash pad.
- Turn ON the engine and power up the VCI.
- Select the vehicle model from the GDS screen.
- Commence EOP flow deviation learning.

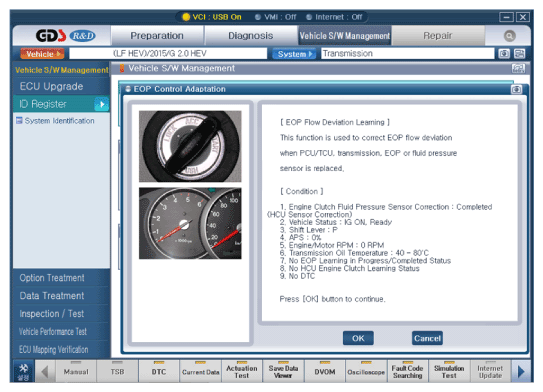

Fig 1: EOP Oil Flow Deviation Learning GDS Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

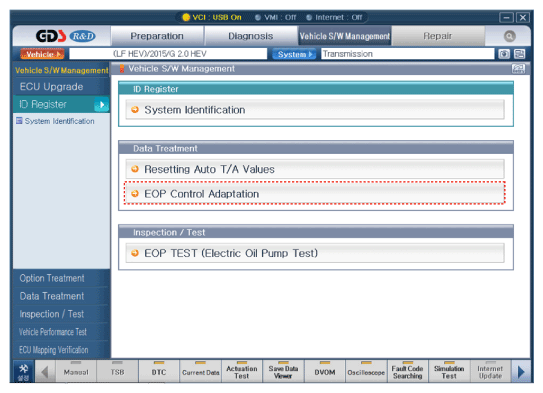

Fig 2: EOP Oil Flow Deviation Learning GDS Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
