Engine Control System - 2.0L
>>
Camshaft Position Sensor (CMPS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

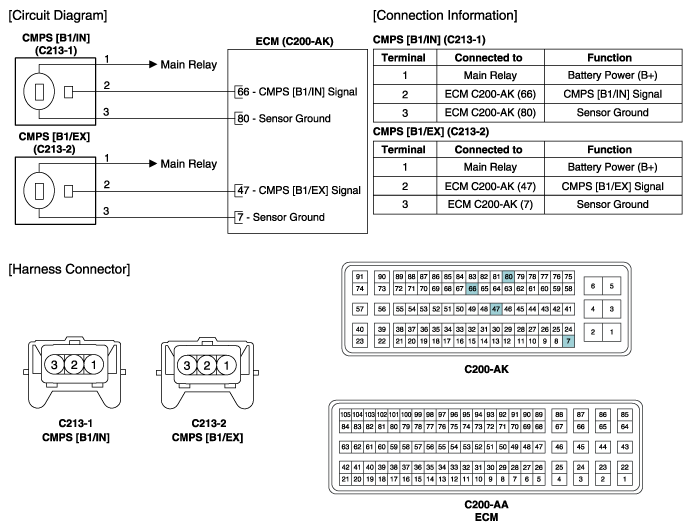

Fig 1: Camshaft Position Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
