Repair Procedures: Inspection

1. Check for resistance between terminals in each switch position (LH).

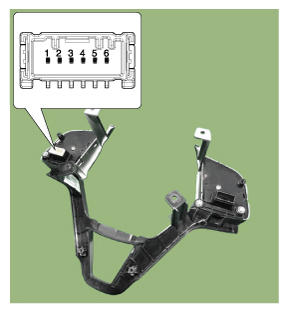

   Fig 1: Checking Resistance Between Terminals In Switch Position (LH)

   Courtesy of HYUNDAI MOTOR AMERICA

   [LH: Audio + Hands Free]

   Switch	Connector Terminal	Resistance (± 5%)
   SEEK Up	2-5	430 Ω
   SEEK Down		1.11 kΩ
   MODE		2.11 kΩ
   MUTE		3.11 kΩ
   Volume (+)		4.61 kΩ
   Volume (-)		6.81 kΩ
   Voice		10.71 kΩ
   SEND		18.91 kΩ
   END		40.91 kΩ

2. Check for resistance between terminals in each switch position (RH).

Fig 2: Checking Resistance Between Terminals In Switch Position (RH)

Courtesy of HYUNDAI MOTOR AMERICA

[RH: Trip + Cruise]
