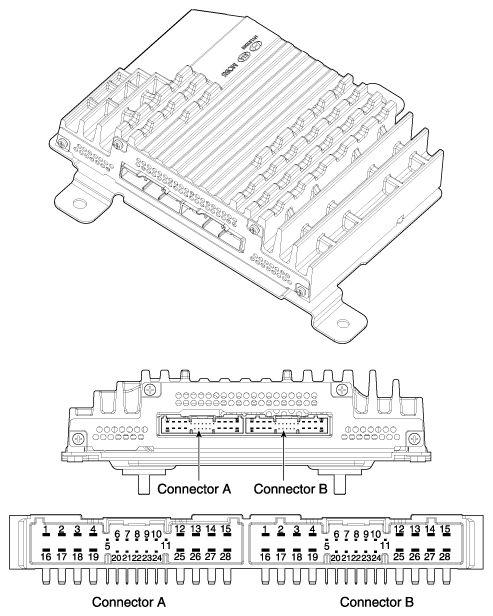

| 1 |
BATT (+) |
1 |
Right tweeter speaker (+) |
| 2 |
BATT (+) |
2 |
Right tweeter speaker (-) |
| 3 |
BATT (+) |
3 |
Left tweeter speaker (+) |
| 4 |
BATT (+) |
4 |
Left tweeter speaker (-) |
| 5 |
- |
5 |
- |
| 6 |
Multi-media CAN (High) |
6 |
- |
| 7 |
Multi-media CAN (Low) |
7 |
- |
| 8 |
ACC |
8 |
- |
| 9 |
Navigation voice (+) |
9 |
- |
| 10 |
- |
10 |
- |
| 11 |
- |
11 |
- |
| 12 |
- |
12 |
Rear right door speaker (-) |
| 13 |
- |
13 |
Rear right door speaker (+) |
| 14 |
- |
14 |
Rear left door speaker (-) |
| 15 |
- |
15 |
Rear left door speaker (+) |
| 16 |
Ground |
16 |
Subwoofer1 (+) |
| 17 |
Ground |
17 |
Subwoofer1 (-) |
| 18 |
Ground |
18 |
Subwoofer2 (+) |
| 19 |
Ground |
19 |
Subwoofer2 (-) |
| 20 |
SPDIF (+) |
20 |
- |
| 21 |
SPDIF (+) |
21 |
- |
| 22 |
SPDIF ground (Shield) |
22 |
- |
| 23 |
Navigation voice (-) |
23 |
- |
| 24 |
- |
24 |
- |
| 25 |
- |
25 |
Front left door speaker (-) |
| 26 |
- |
26 |
Front left door speaker (+) |
| 27 |
Front Center speaker (-) |
27 |
Front right door speaker (-) |
| 28 |
Front Center speaker (+) |
28 |
Front right door speaker (+) |
