Repair Procedures: Replacement

[Front]

Tightening torque:

34.2 ~ 53.9 N.m (3.5 ~ 5.5 kgf.m, 25.3~ 39.8 lb-ft)

Fig 1: Loosening Front Seat Mounting Bolts (Front)

Courtesy of HYUNDAI MOTOR AMERICA

[Rear]

Tightening torque:

34.2 ~ 53.9 N.m (3.5 ~ 5.5 kgf.m, 25.3~ 39.8 lb-ft)

Fig 2: Loosening Front Seat Mounting Bolts (Rear)

Courtesy of HYUNDAI MOTOR AMERICA

[Driver's]

Fig 3: Disconnecting Airbag Connector, Seat Warmer & Power Seat Switch Connector (Driver)

Courtesy of HYUNDAI MOTOR AMERICA

[Passenger's]

Fig 4: Disconnecting Airbag Connector, Seat Warmer & Power Seat Switch Connector (Passenger)

Courtesy of HYUNDAI MOTOR AMERICA

Information

The installation procedures of seat mounting bolts

• Push the seat to the rear end of slides and initially tighten the front mounting bolts.
• Push the seat to the front end of slides and completely tighten the rear mounting bolts.
• Send the seat to the rear end again to completely tighten the front mounting bolts.
• Check the seat for smooth movement.
• For the non-automatic slide seats, check the seats are fixed at each designated fixing position.

* How to detach the anchor seat belt

• When replacing anchor pretensioner, make sure to use the assigned tools to remove the anchor safety belt connector (A).

Tools to be used

Tool A: hex wrench screwdriver or drill with diameter of 3 mm and length of 56 mm or more.

Tool B: screwdriver or drill with diameter of 3 mm.

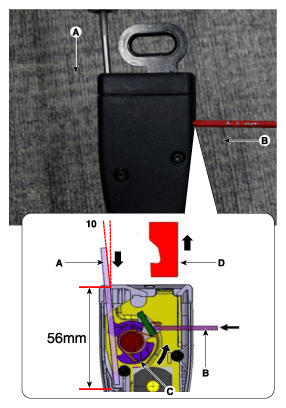

Fig 5: Removing Anchor Safety Belt Connector

Courtesy of HYUNDAI MOTOR AMERICA

1. Insert the tool (A) vertically into the hole (F). Then, tilt it over 10° as shown in (Fig 7).
   NOTE:

   • When tilted 10°, tool (A) pushes and rotates the internal part (C).
2. Insert and push the tool (B) vertically into the hole (E). Then, anchor safety belt connector (D) will be disconnected.
