Components And Components Location: Components

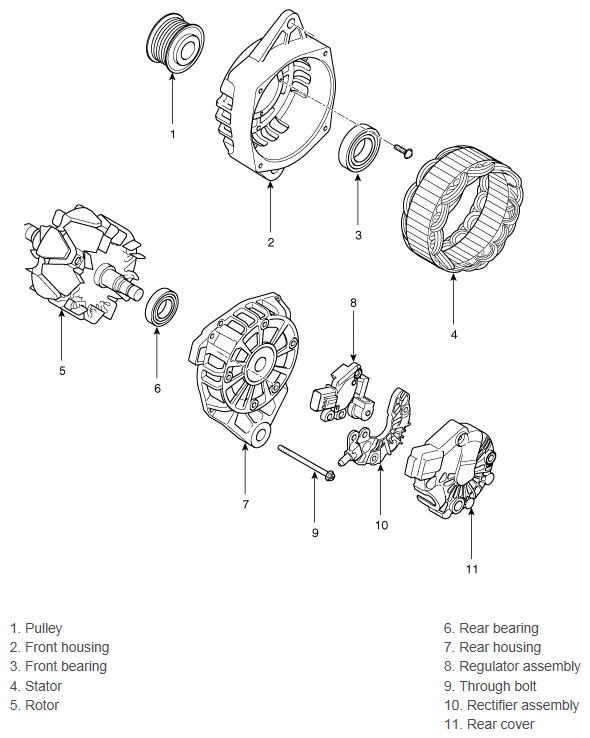

Fig 1: Locating Alternator Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
