Component Location

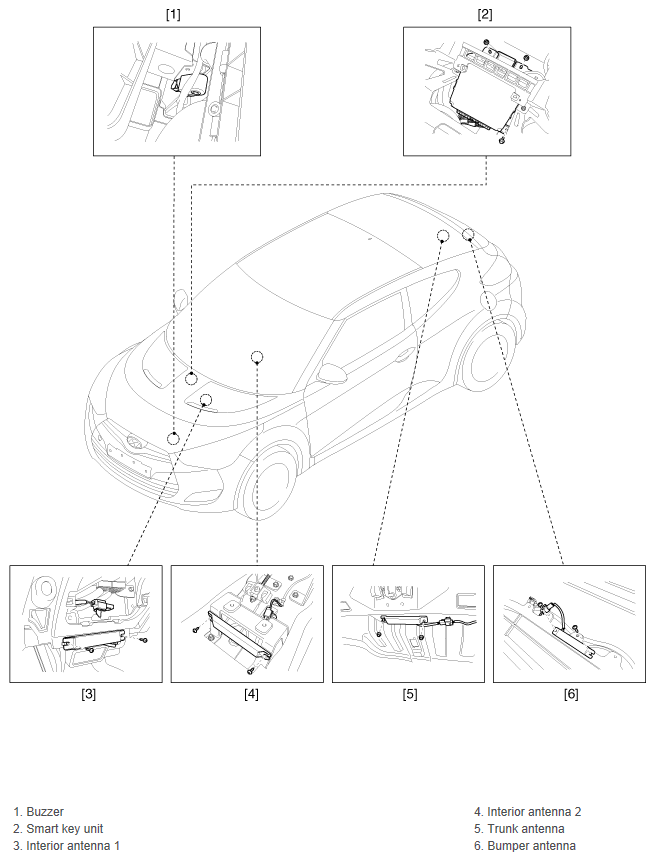

Fig 1: Locating Smart Key System Components (1 Of 2)
G12126213Courtesy of HYUNDAI MOTOR AMERICA

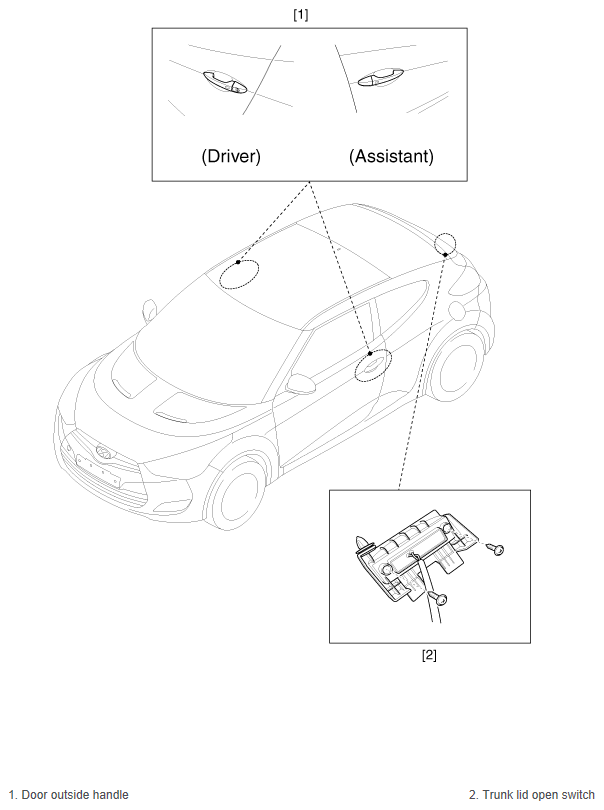

Fig 2: Locating Smart Key System Components (2 Of 2)
G12126214Courtesy of HYUNDAI MOTOR AMERICA
