FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

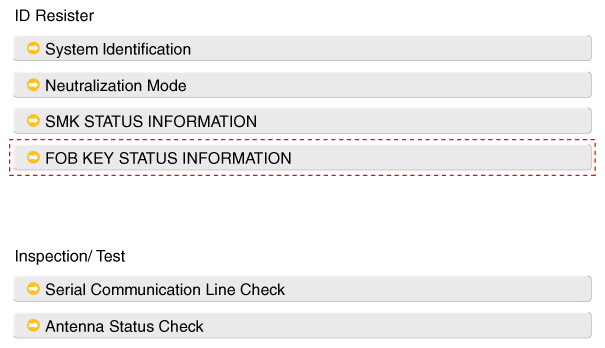

Fig 1: Screen Display - Selecting FOB Key Status Information (1 Of 2)
G12126229Courtesy of HYUNDAI MOTOR AMERICA

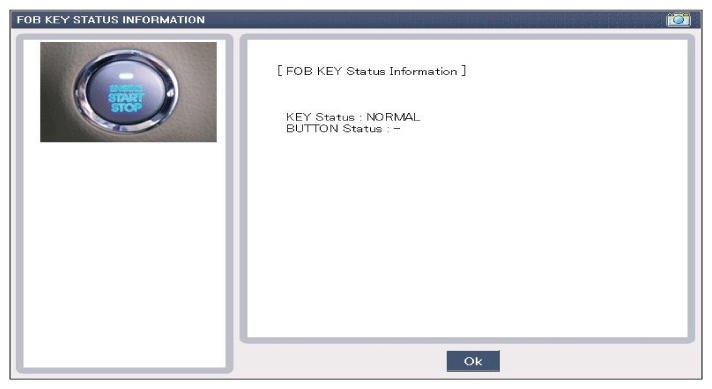

Fig 2: Screen Display - FOB Key Status Information (2 Of 2)
G12126230Courtesy of HYUNDAI MOTOR AMERICA
