Driver Power Window Switch

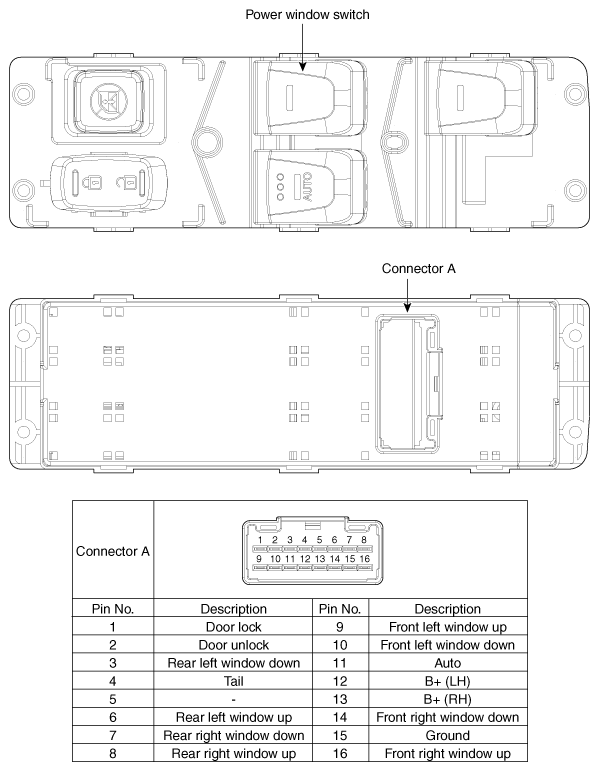

Fig 1: Driver Power Window Switch & Connector Description Chart
G12126425Courtesy of HYUNDAI MOTOR AMERICA
