Components And Components Location: Components

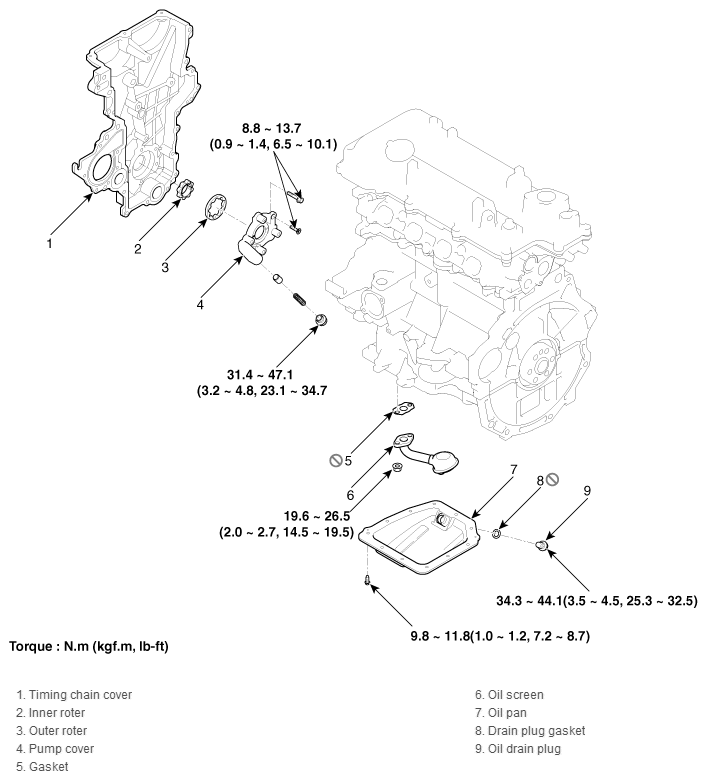

Fig 1: Locating Oil Pump Components With Torque Specifications
G12129191Courtesy of HYUNDAI MOTOR AMERICA
