Components And Components Location: Components

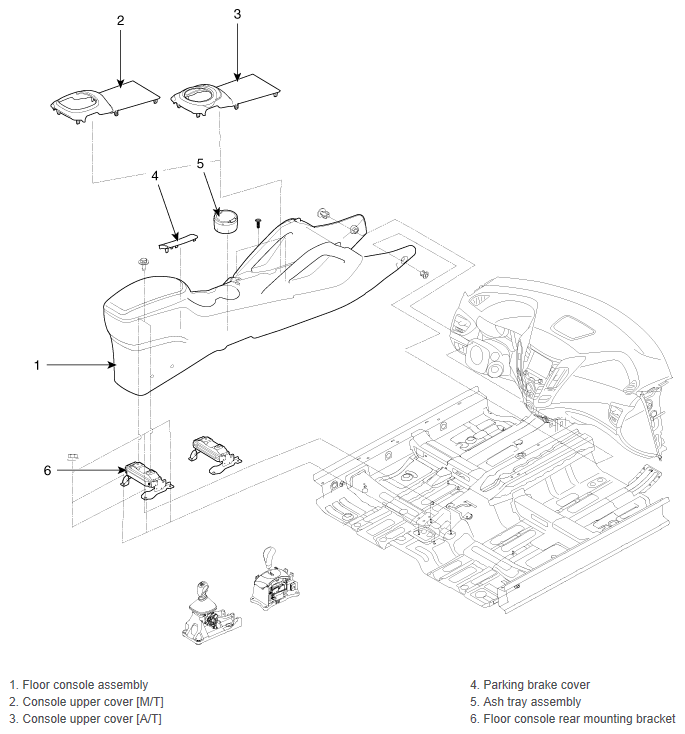

Fig 1: Locating Console Components

G12125897

Courtesy of HYUNDAI MOTOR AMERICA
