Components And Components Location: Components: LH

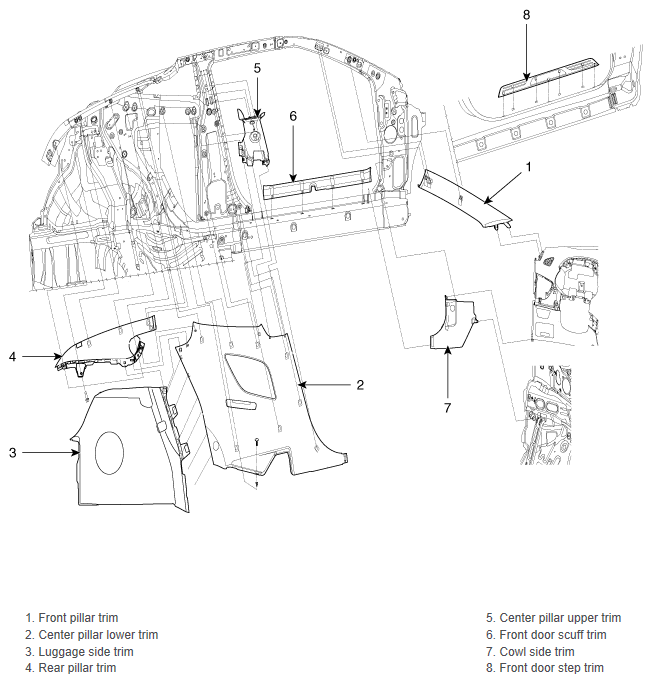

Fig 1: Locating Interior Trim Components (LH)

G12125969

Courtesy of HYUNDAI MOTOR AMERICA
