Components And Components Location: Components

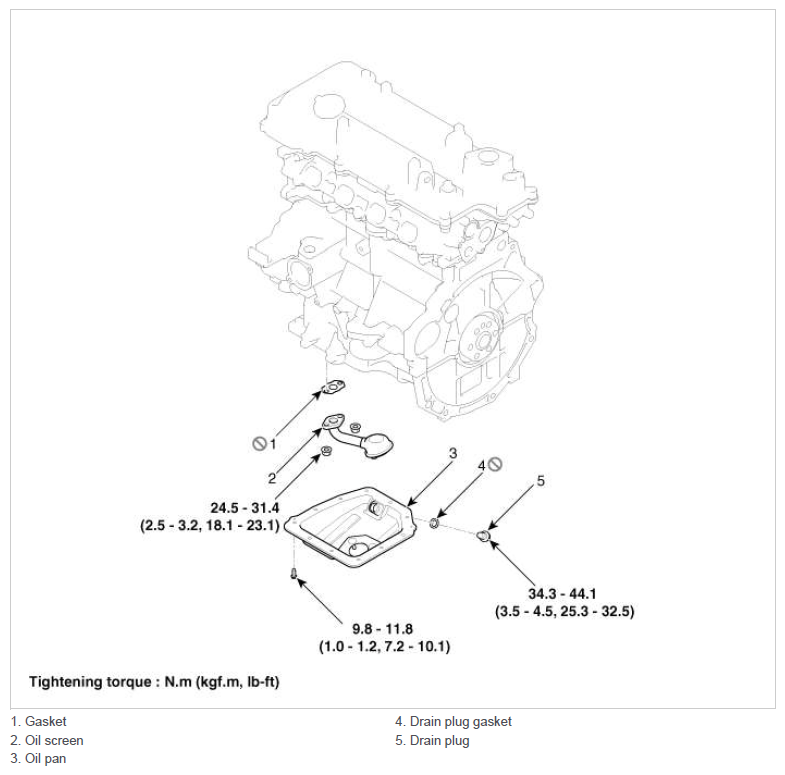

Fig 1: Locating Oil Pan Components With Torque Specification
G12594416Courtesy of HYUNDAI MOTOR AMERICA
