Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

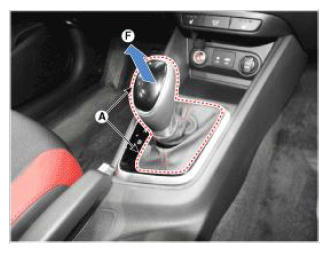

  2. Pull the knob & boots (A) in the direction of "F" and remove the knob & boots (A).
    G12599031Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ")

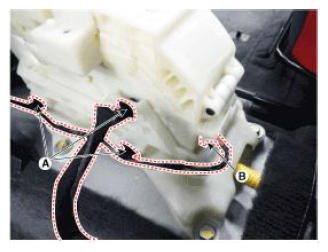

  4. Disconnect the fixing clip (A) of wiring and connector (B) from the shift lever.
    G12599032Courtesy of HYUNDAI MOTOR AMERICA

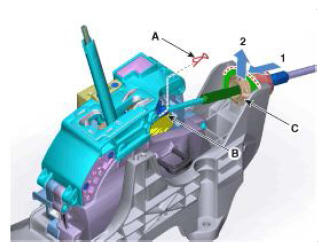

  5. Disconnect the shift cable.
    1. Remove the snap pin (A).
    2. Disconnect the cable eye end (B) from the shift lever.
    3. Disconnect the cable socket (C) from the shift lever.
    G12599033Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:

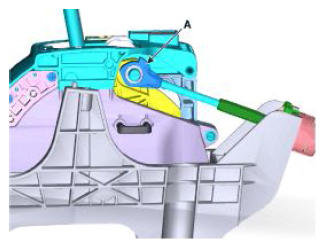

    • Lug (A) must assemble upward.
      G12599034Courtesy of HYUNDAI MOTOR AMERICA

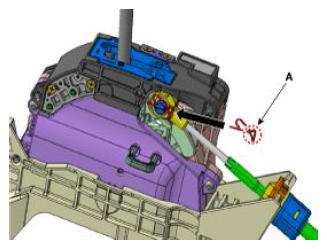

    • Bending area (A) must assemble the front.
      G12599035Courtesy of HYUNDAI MOTOR AMERICA

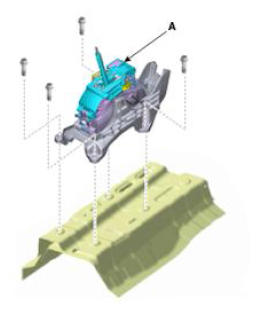

  6. Remove the bolts and then shift lever assembly (A).

    Tightening Torque:  8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

G12599036Courtesy of HYUNDAI MOTOR AMERICA
