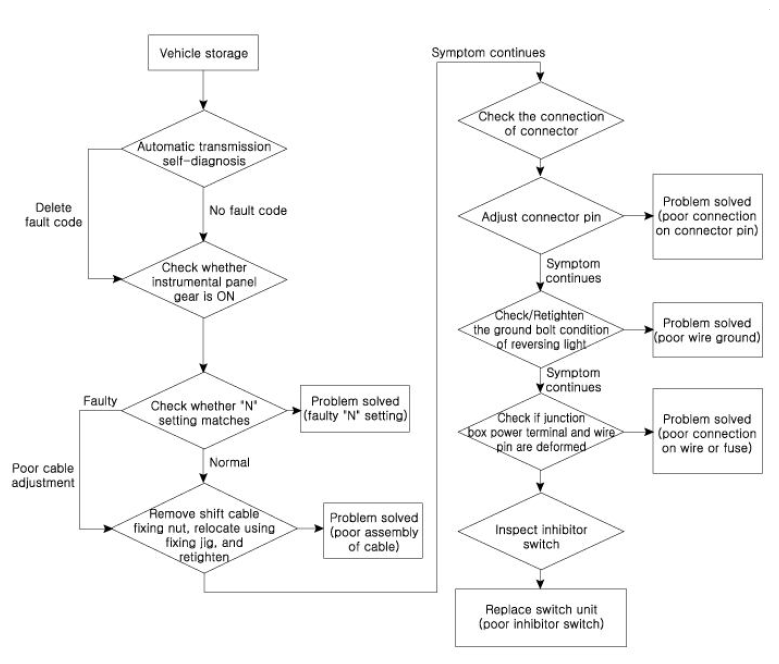

Inspection Flow Of The Inhibitor Switch
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
