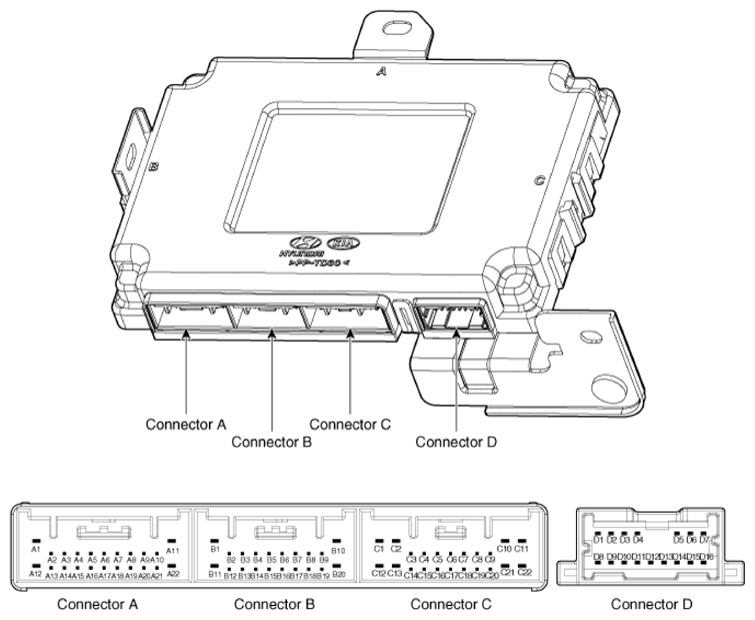

| 1 |
Battery + |
Front wiper switch_input |
- |
Door lock indicator_output |
| 2 |
IGN 1 |
Rear wiper switch_input |
Key hole illumination_output |
PAS ON indicator_output |
| 3 |
IGN 2 |
Front wiper int _input |
Assist seat belt indicator_output |
Steering wheel heated indicator_output |
| 4 |
Key in switch_input |
Fog Lamp switch_input |
Front wiper low Relay_Output |
Pocket Lamp_Output |
| 5 |
Front wiper low back up switch_input |
Auto light sensor_input |
PAS buzzer_output |
- |
| 6 |
Rear wiper washer switch_input |
NTC Sensor_Input |
- |
Foot lamp |
| 7 |
- |
Sunroof (High)_input |
Front wiper high Relay_Output |
Key solenoid output |
| 8 |
Blade position low_input |
B CAN (High) |
FPAS Power_output |
- |
| 9 |
- |
B CAN (Low) |
RPAS Power_output |
- |
| 10 |
- |
C CAN (Low) |
PAS Power |
- |
| 11 |
- |
- |
Steering wheel heated indicator_output |
ATM Solenoid |
| 12 |
ACC_input |
Window lock switch_input |
Ground power |
PAS |
| 13 |
Front wiper washer switch_input |
- |
Rear wiper Relay_Output |
Rain sensor |
| 14 |
Brake switch_input |
Light switch |
Mirror unfolding Relay_Output |
Safety power window ECU |
| 15 |
- |
Head lamp high beam switch_input |
Mirror folding Relay_Output |
Room Lamp_Output |
| 16 |
Steering wheel heated switch_input |
Auto light power_output |
- |
- |
| 17 |
sunroof open switch_input |
Crash output |
Head lamp washer Relay_Output |
|
| 18 |
PAS ON Switch_input |
Safety power window_output |
Wiper ON relay |
| 19 |
PAS Option_input |
Auto light ground_output |
Ground |
| 20 |
- |
C CAN (High) |
Ground |
| 21 |
Key inter lock switch |
|
Security indicator |
| 22 |
Ground_signal |
Steering wheel heated indicator_power |
