Special Service Tools
AUTOMATIC TRANSAXLE SYSTEM SPECIAL SERVICE TOOLS
| Tools (Number and name) | Illustration | Use |
|---|---|---|
| 09200-3N000 Engine support fixture (Beam) |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-3N000) with the supporter (SST No.: 09200-2S000). * Permit operating with 09200-38001. * Refer to the engine support fixture assembly drawing below. |
|
| 09200-2S000 Engine support fixture (Supporter) |
Removal and installation of the transaxle. Use this supporter (SST No.: 09200-2S000) with the beam (SST No.: 09200-38001/3N000). * Refer to the engine support fixture assembly drawing below. |
|
| 09452-26100 Oil seal installer |
Installation of the differential oil seal in the transaxle case and housing side (2WD). [Using with bar (SST No. 09231-H1100)] |
|
| 09231-H1100 Bar |
Installation of the differential oil seal in the transaxle case and housing side. [Using with oil seal installer (SST No.:09452-26100)] |
|
| 09480-A3800 Inhibitor switch neutral fixed pin |
When installing the manual control lever on the inhibitor switch, used to align the neutral position. |

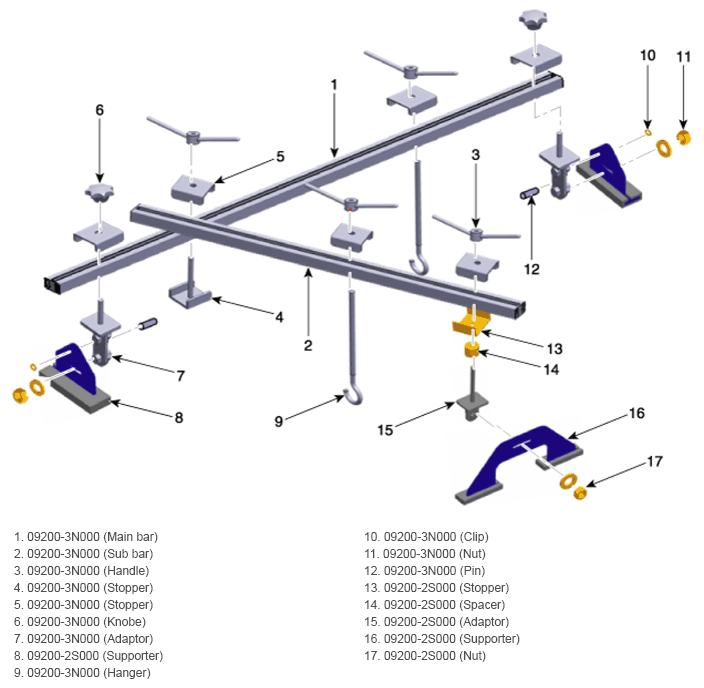

* Engine support fixture special tool assembly drawing
