Neutralization Status Check
- Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

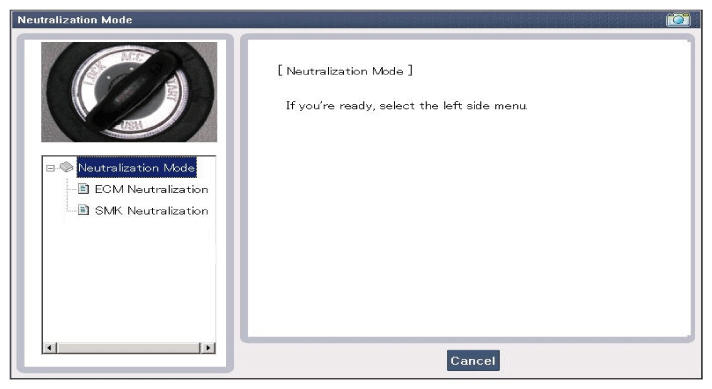

- After IG ON, select the "Neutralization mode".

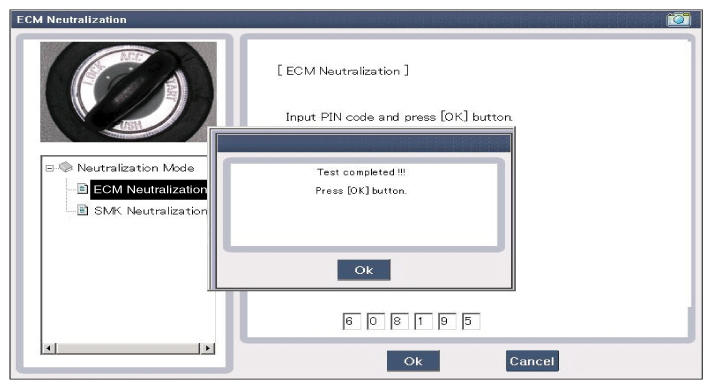

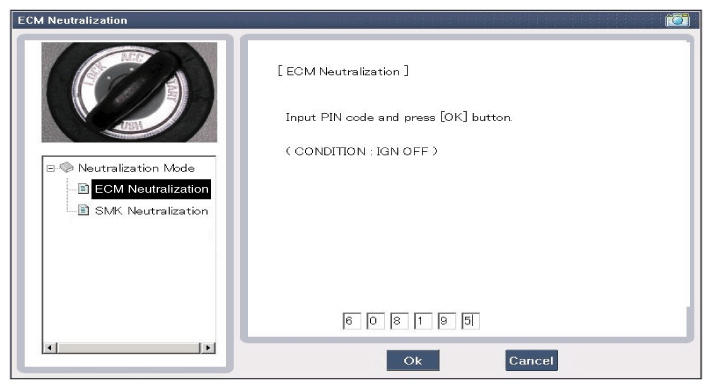

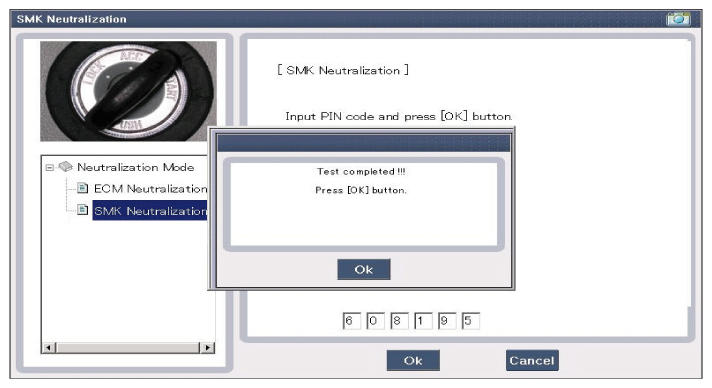

INPUT SWITCH LIST
| No | Item name | Unit |
|---|---|---|
| 1 | SSB SW1 | - |
| 2 | SSB SW2 | - |
| 3 | ACC | - |
| 4 | IGN1 | - |
| 5 | IGN2 | - |
| 6 | ACC/IGN1/IGN2 Relay | - |
| 7 | Gear "P" Position (A/T) Clutch SW (M/T) | - |
| 8 | Brake SW | - |
| 9 | FL Door Lock Button | - |
| 10 | FR Door Lock Button | - |
| 11 | Liftgate Release Button | - |
| 12 | Battery Voltage | - |
| 13 | Wheel Speed | - |
ACTUATOR LIST
| No. | Item name | Condition |
|---|---|---|
| 1 | External Buzzer | Ignition switch ON Engine off |
| 2 | Interior Antenna 1 Active | Ignition switch ON Engine off |
| 3 | Interior Antenna 2 Active | Ignition switch ON Engine off |
| 4 | Interior Antenna 3 Active | Ignition switch ON Engine off |
| 5 | Bumper/trunk Antenna Active | Ignition switch ON Engine off |
| 6 | DRV_DR Antenna Active | Ignition switch ON Engine off |
| 7 | AST_DR Antenna Active | Ignition switch ON Engine off |
| 8 | BBS Illumination (OFF/ACC/ON) | Ignition switch ON Engine off |
| 9 | ACC/IGN1/IGN2 Relay | Ignition switch ON Engine off |
