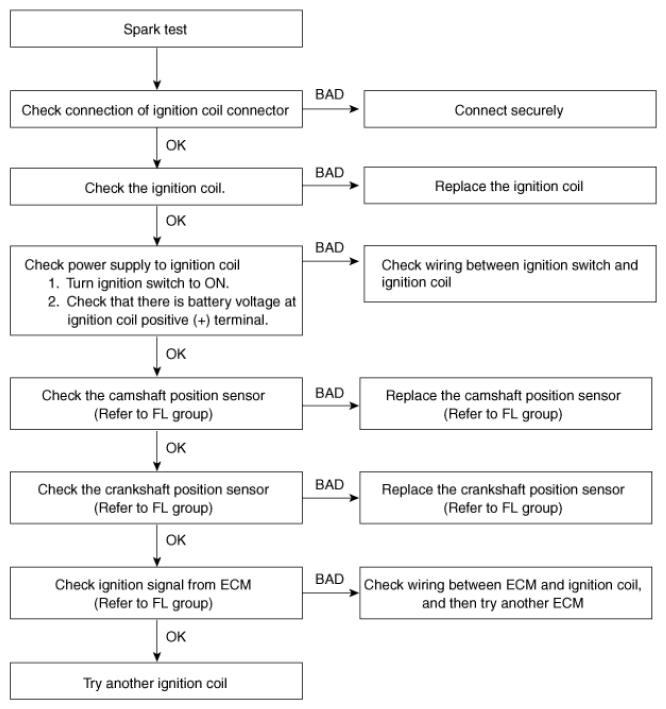

Spark Test

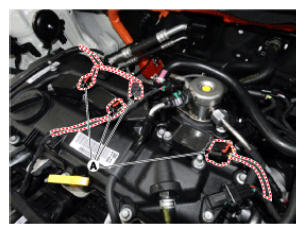

Disconnect the injector extension connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

Disconnect the ignition coil connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the ignition coil (A).

Courtesy of HYUNDAI MOTOR AMERICA
Using a spark plug wrench, remove the spark plug (A).
NOTE:
- Be careful that no contaminates enter into spark plug holes.
Insert the spark plug on the ignition coil.
Ground the spark plug to the engine.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not crank the engine for more than 5~10 seconds.
Check all the spark plugs.
Using a spark plug wrench, install the spark plug.
Tightening torque:

14.7 ~ 24.5 N.m (1.5 ~ 2.5 kgf.m, 10.8 ~ 18.0 Ib-ft)
Install the ignition coil.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 Ib-ft)
Connect the ignition coil connector.
Connect the injector connector.

Courtesy of HYUNDAI MOTOR AMERICA
