Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization Mode".

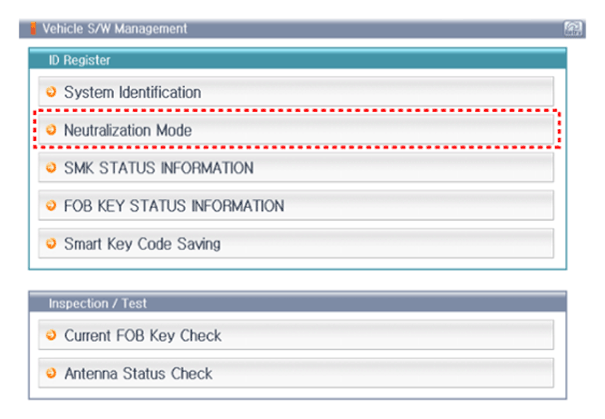

    G12614520Courtesy of HYUNDAI MOTOR AMERICA

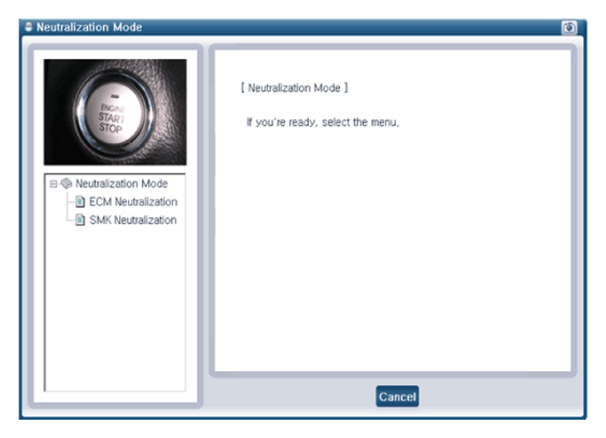

    G12614521Courtesy of HYUNDAI MOTOR AMERICA

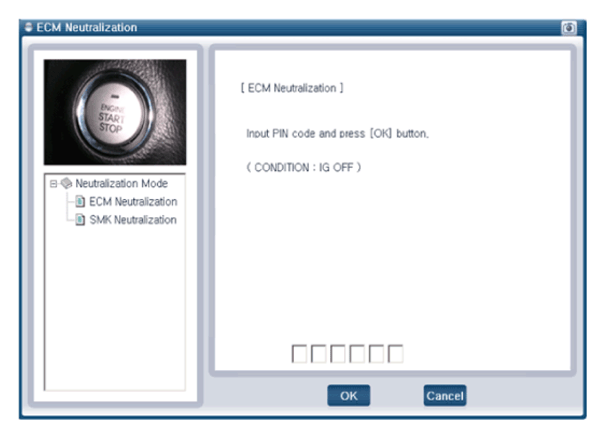

    G12614522Courtesy of HYUNDAI MOTOR AMERICA

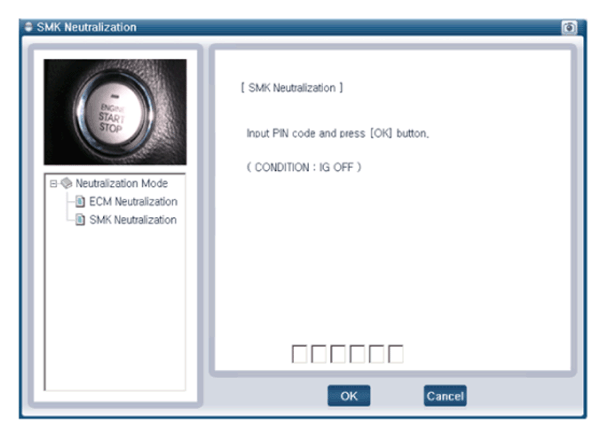

    G12614523Courtesy of HYUNDAI MOTOR AMERICA
