Liftgate Lock Module Inspection
- Remove the liftgate lid trim.
(Refer to Body - "LIFTGATE TRIM ")

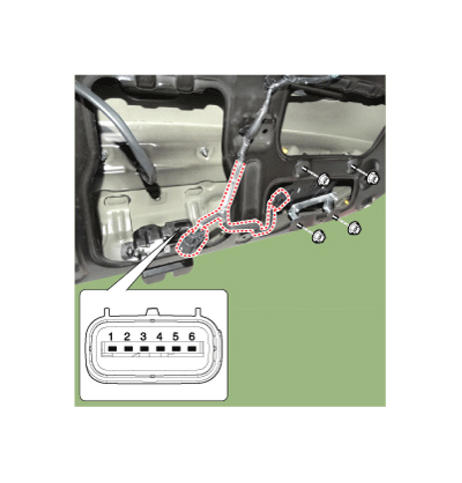

- Disconnect the connector from the actuator
- Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
- Checking the liftgate of the vehicle power option power refers to the liftgate module.
