Liftgate Open Switch

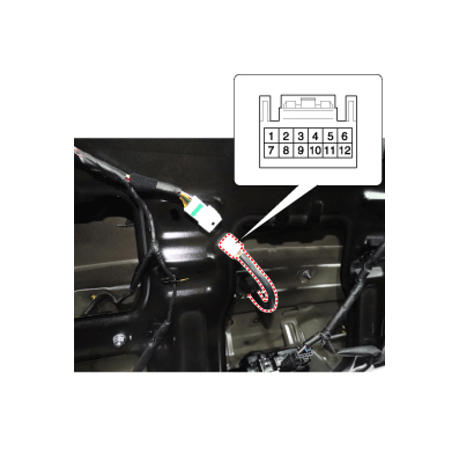

  1. Check for continuity between the liftgate latch terminals.
    G12614507Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, replace the switch.
    G12614508Courtesy of HYUNDAI MOTOR AMERICA
