Repair Procedures: Removal

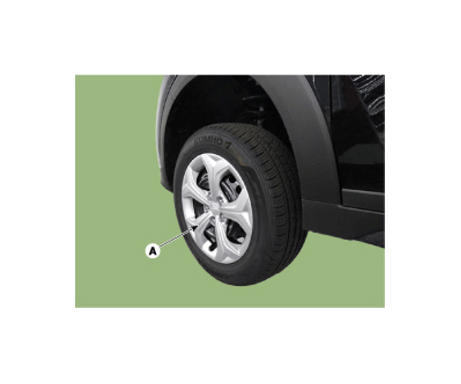

- Remove the front wheel and tire (A) from front hub.
Tightening torque:
88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)
NOTE:- Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

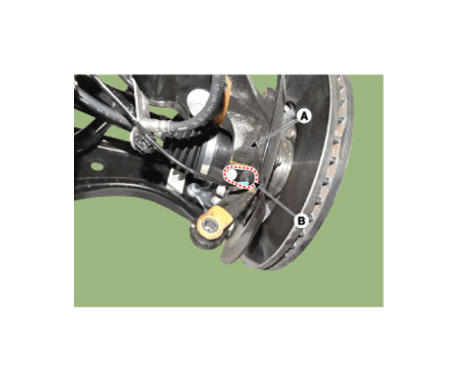

- Remove the wheel speed sensor (B) from the front axle assembly (A).
Tightening torque:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

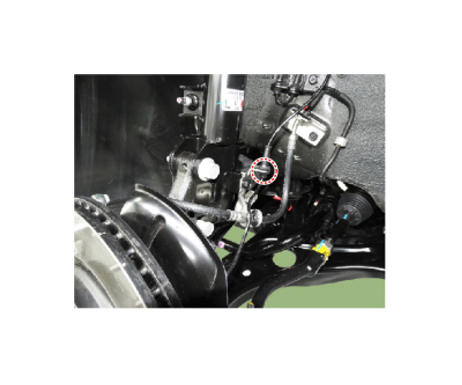

- Remove the wheel speed sensor bracket.

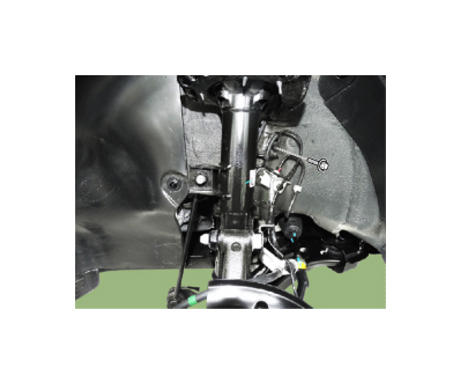

- Remove the wheel speed sensor cable bracket bolt.
Tightening torque:
19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)
- Remove the front wheel guard.
- Disconnect the front wheel speed sensor connector and then remove the front wheel speed sensor.
- Installation is the reverse of removal.
