Components Location

WARNING: This page is about a different variant/trim than selected.

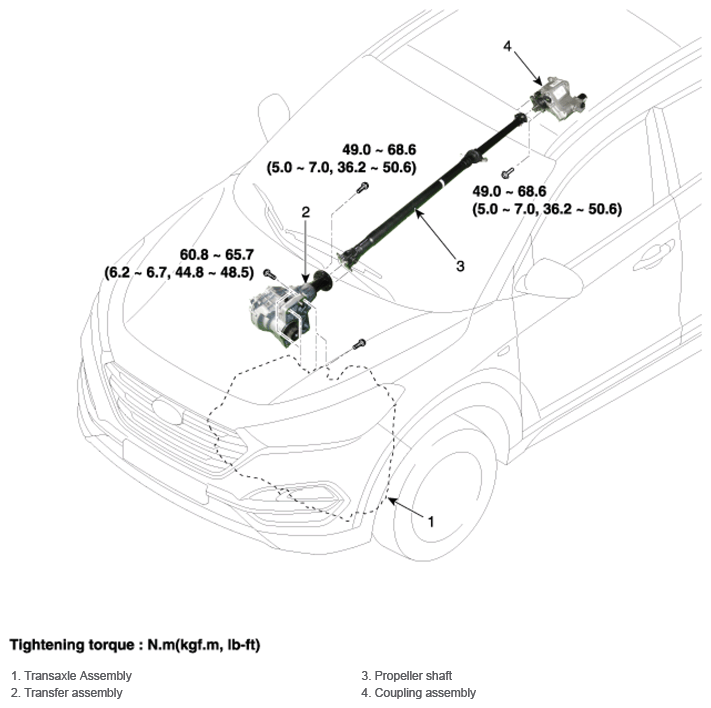

Fig 1: Front Wheel Transfer Assembly Components With Torque Specification
G12609355Courtesy of HYUNDAI MOTOR AMERICA
