Repair Procedures: Disassembly

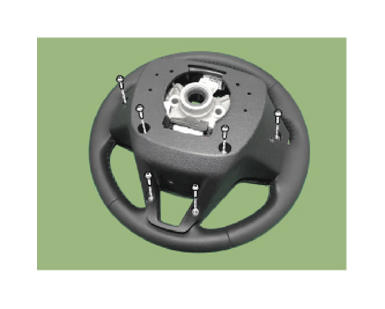

  1. Loosen the screw and then remove the lower cover.
    G12608326Courtesy of HYUNDAI MOTOR AMERICA

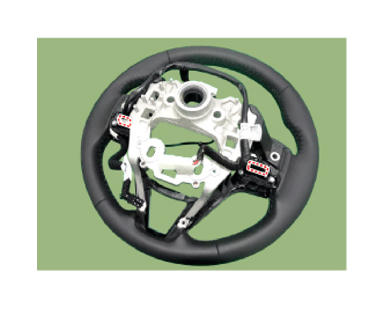

  2. Disconnect the connector and then remove the wiring.
    G12608327Courtesy of HYUNDAI MOTOR AMERICA

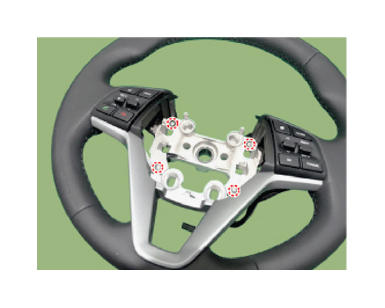

  3. Loosen the screw and then remove the remote control switch assembly.
    G12608328Courtesy of HYUNDAI MOTOR AMERICA

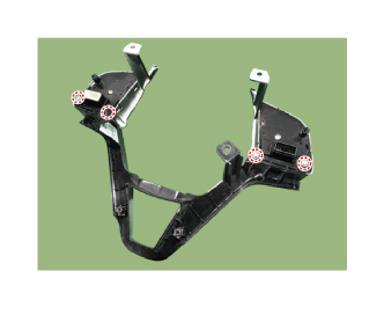

  4. Loosen the screw and then remove the remote control switch.
    G12608329Courtesy of HYUNDAI MOTOR AMERICA
  5. Reassembly is the reverse of the disassembly.
