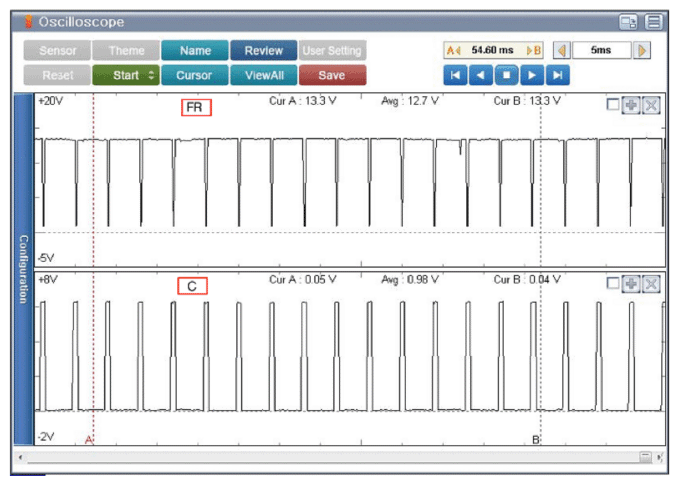

Signal Waveform & Data

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

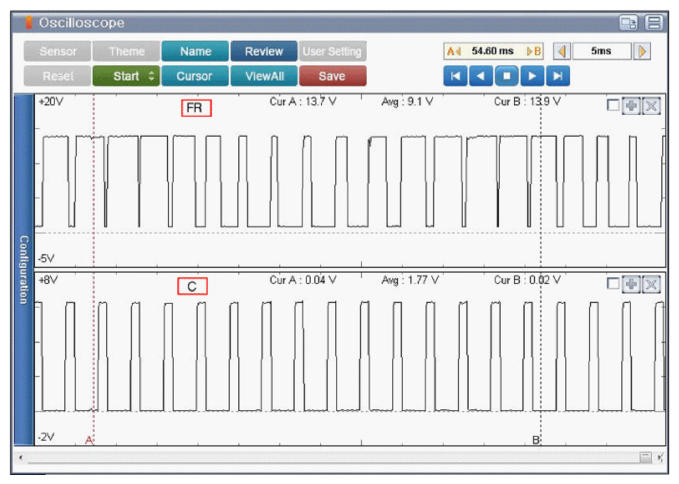

Duty (+) from FR terminal is increased if electrical loads are ON (Head Lamp and Defrost are ON) ECM controls generation of Generator with duty from FR terminal when electrical Loads turn on
