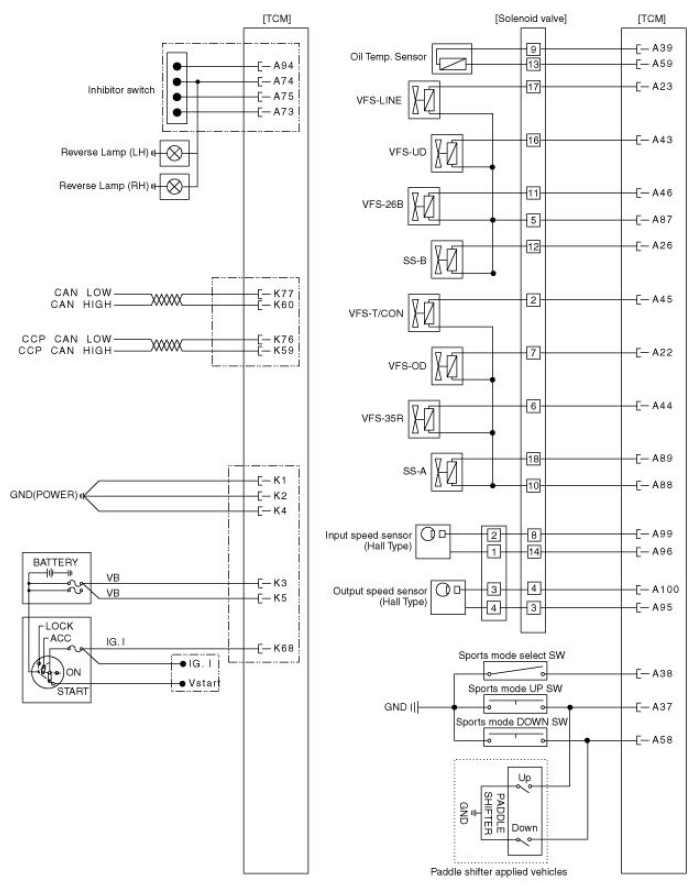

Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
[Inhibitor Switch]
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
