Components Location

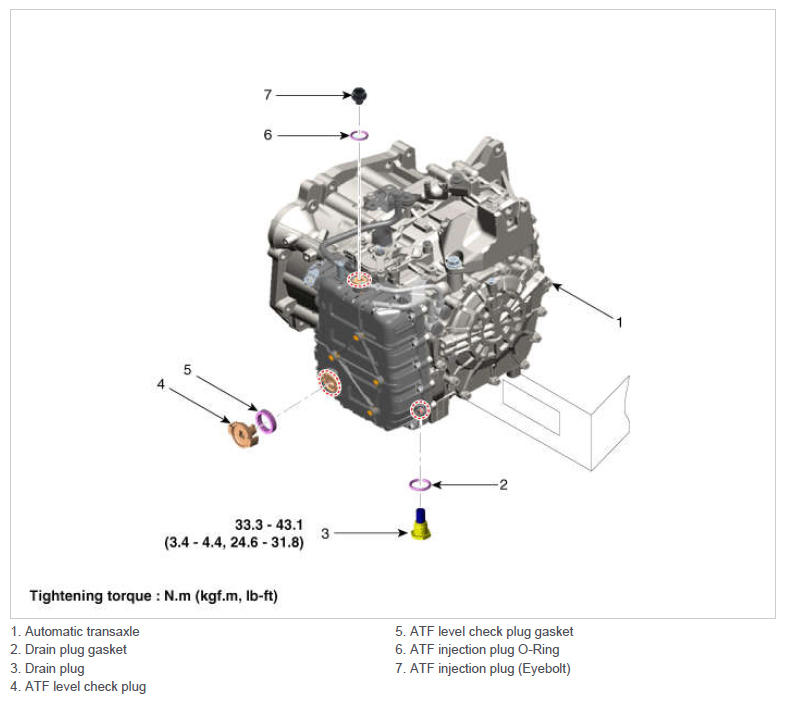

Fig 1: Locating Automatic Transaxle Fluid Components With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
