Components Location (2)

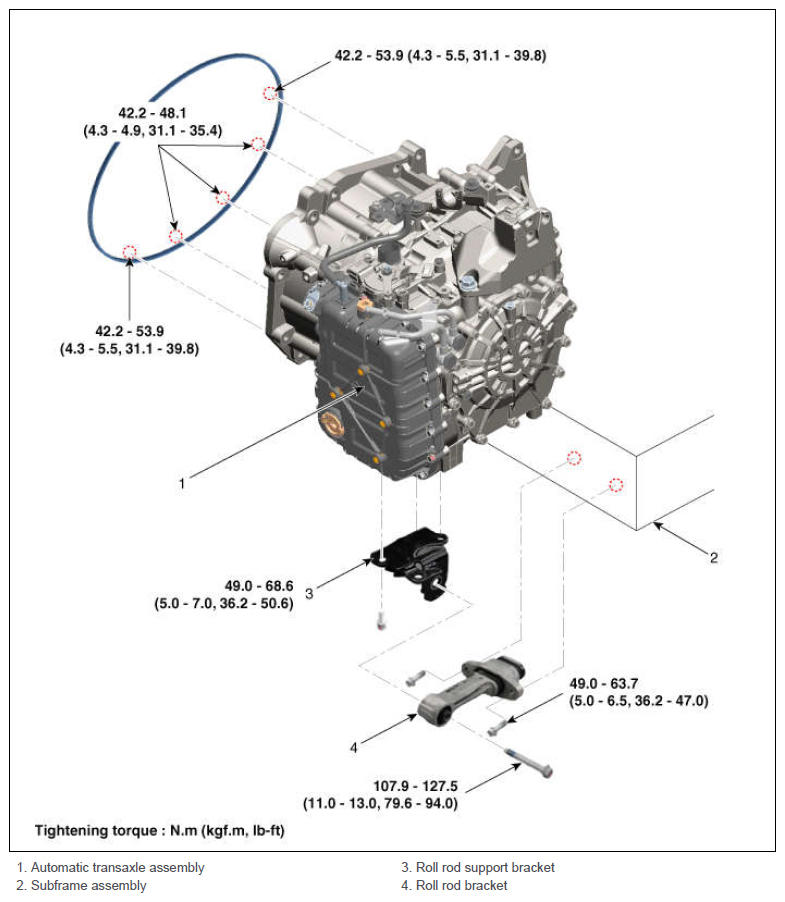

Fig 1: Locating Automatic Transaxle Components With Torque Specification (2)
G12598757Courtesy of HYUNDAI MOTOR AMERICA
