Elantra Eco
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.4L
>>
Ambient Temperature Sensor (ATS)
>>
Schematic Diagrams
>>

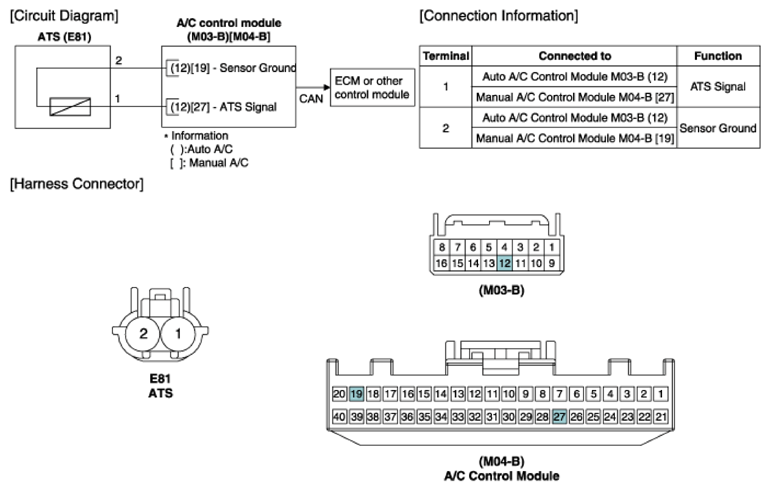

Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
