Repair Procedures: Adjustment
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the lower crash pad.
(Refer to Body - "CRASH PAD ")

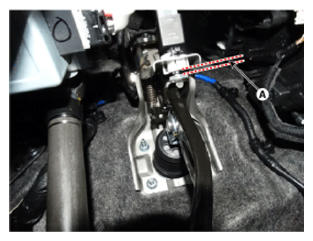

- Confirm the gap between stop lamp switch and bracket.
Stop Lamp Clearance (A): 1.0 ~ 2.0 mm (0.04 ~ 0.08 in.)
- If the gap between stop lamp switch and bracket is not 1.0 ~ 2.0mm (0.04 ~ 0.08in), check the mounting clip and other part of around stop lamp.
- If there is normal, remove the stop lamp switch and then install again.
