Description And Operation: Operation

How To Use:

  1. Engine Auto-Stop: D-range + brake pedal is pressed.
    G12977149Courtesy of HYUNDAI MOTOR AMERICA
  2. Engine Auto-Start
    1. Brake pedal is released.
    2. Brake pedal is pressed + Manual range (Sports mode)
    3. Brake pedal is pressed + R range

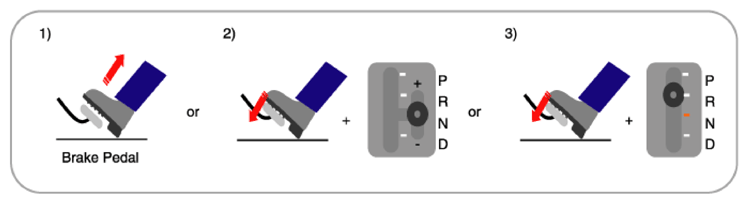

G12977150Courtesy of HYUNDAI MOTOR AMERICA

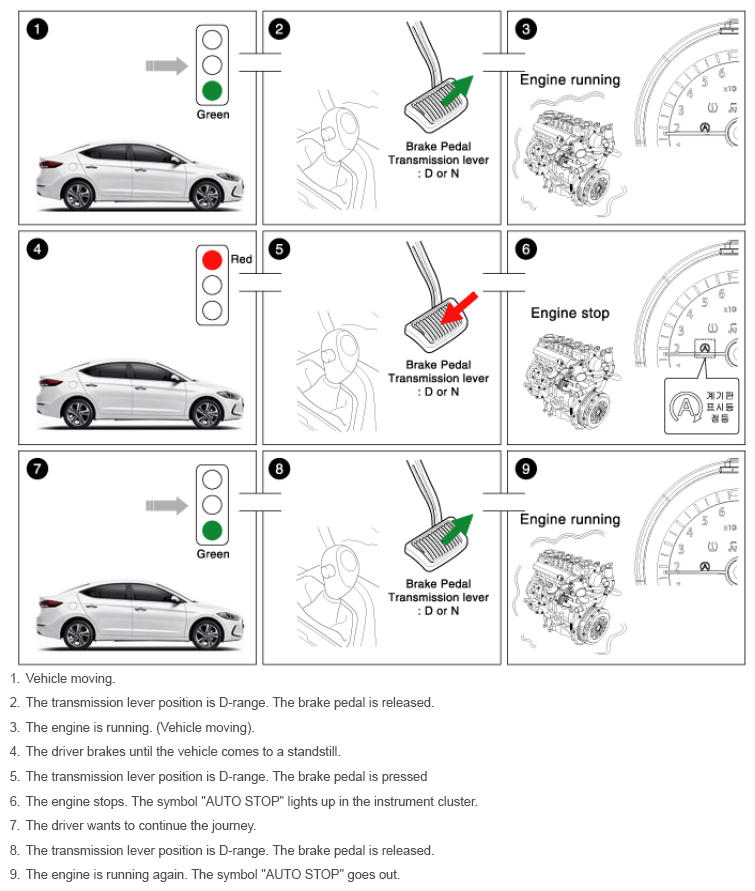

G12977151Courtesy of HYUNDAI MOTOR AMERICA
