Repair Procedures: Inspection

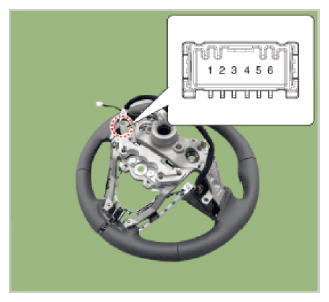

  1. Disconnect the cruise control switch connector from the control switch.
    G13015439Courtesy of HYUNDAI MOTOR AMERICA
  2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
Switch Connector terminal Resistance (± 5%)
CANCEL 2 - 6 390Ω
SET - 2 - 6 610Ω
RES + 2 - 6 910Ω
CRUISE 2 - 6 1.38 kΩ
